DDC-JQ型電磁真空帶充氣閥

DDC-JQ型電磁真空帶充氣閥是機械真空泵安全閥，安裝于機械真空泵的進氣口，并與泵同步開啟和關閉。當泵停止工作或電源突然中斷時，閥門自動關閉，使真空系統保持真空并將大氣充入泵腔內，從而避免泵油逆向流動而污染真空系統。適用介質為純凈空氣或非腐蝕性氣體。

下一個產品：真空管道連接件

上一個產品：沒有了

分享到：

三精閥門 DDC-JQ型電磁真空帶充氣閥可定制

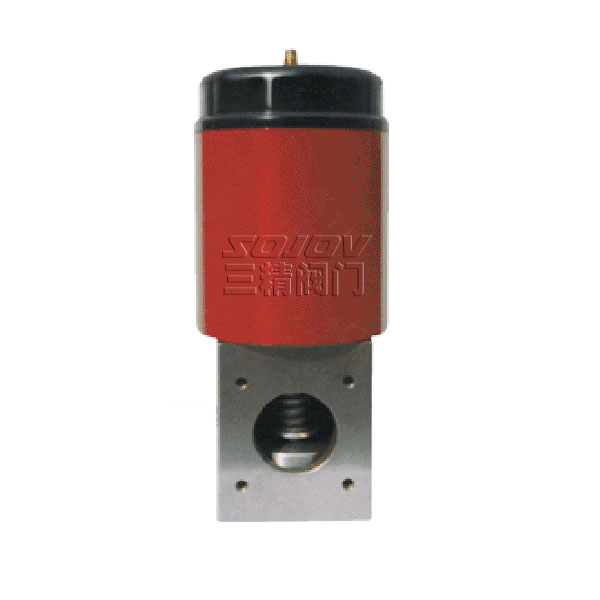

DDC-JQ型電磁真空帶充氣閥

DDC-JQ型-電磁真空帶充氣閥概述

DDC-JQ electromagnetic vacuum belt inflatable valve is a mechanical vacuum pump safety valve, installed in the mechanical vacuum pump inlet, and synchronously open and close with the pump. When the pump stops working or the power supply suddenly interrupts, the valve automatically closes, so that the vacuum system keeps vacuum and fills the air into the pump cavity, thereby avoiding the reverse flow of pump oil and polluting the vacuum system. The applicable medium is pure air or non corrosive gas.

DDC-JQ型電磁真空帶充氣閥主要技術性能

適用范圍：Applicability	105～10-2Pa
閥門漏率：Valve Leak Rate	≤6.7×10-3Pa.L/S.
適用溫度：Applicability	-30～+50℃
線圍溫升：Coil Temperature Rise	≤65℃
開閉時間：Open-close Time	≤3S
電源電壓：Mains Voltage	220V/50Hz

DDC-JQ型電磁真空帶充氣閥主要零件材料

閥體、閥蓋、閥板：碳鋼或鋁合金

Body, bonnet, valve plate: carbon steel or aluminum alloy.

密封圈：丁腈橡膠

Sealing ring: nitrile rubber

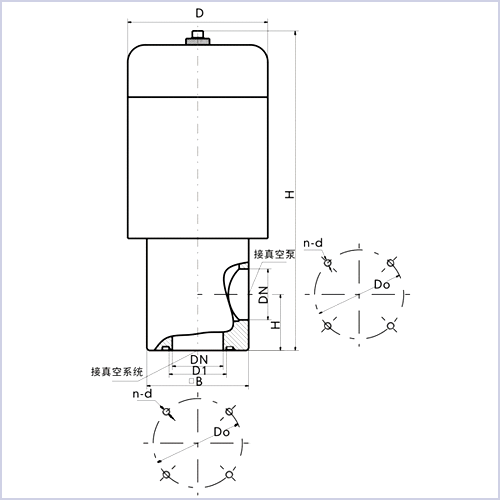

DDC-JQ型電磁真空帶充氣閥外形及連接尺寸

Model 型號	DN	h	B	H	D	Do	D1	n-d	Machineal pump 機械泵匹配參考
DDC-JQ16	16	28	48	176	68	42	22	4-M5	2XZ-0.5～1
DDC-JQ25	25	35	58	199	82	55	29	4-M6	2XZ-2～4
DDC-JQ32	32	40	68	222	92	64	36	4-M6	2XZ-4
DDC-JQ40	40	44	80	253	110	70	44	4-M6	2XZ-8
DDC-JQ50	50	56	94	294	124	90	55	4-M8	2X-15
DDC-JQ65	65	65	115	320	135	105	70	4-M8	2X-30
DDC-JQ80	80	75	140	367	165	125	85	4-M8	2X-70
